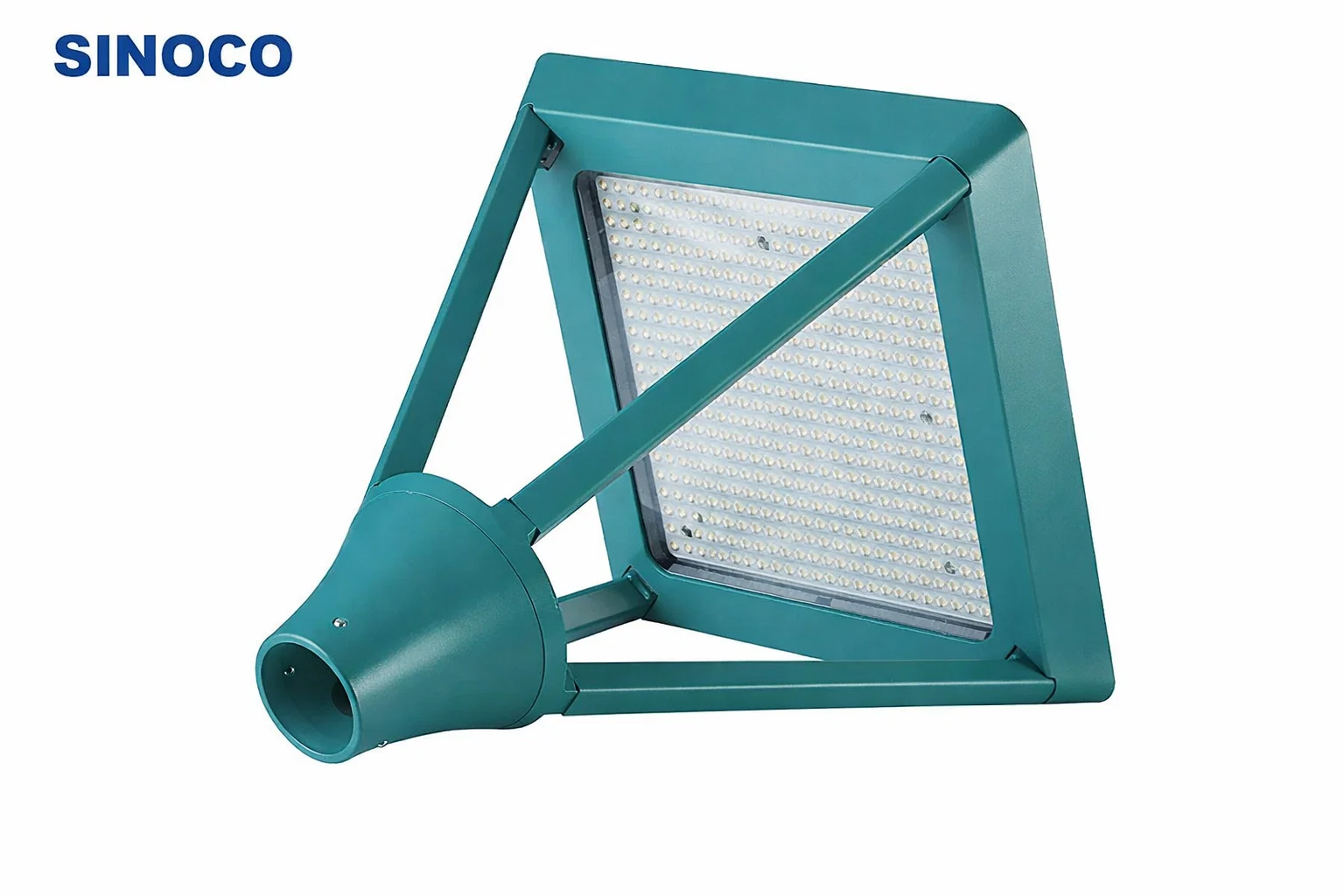

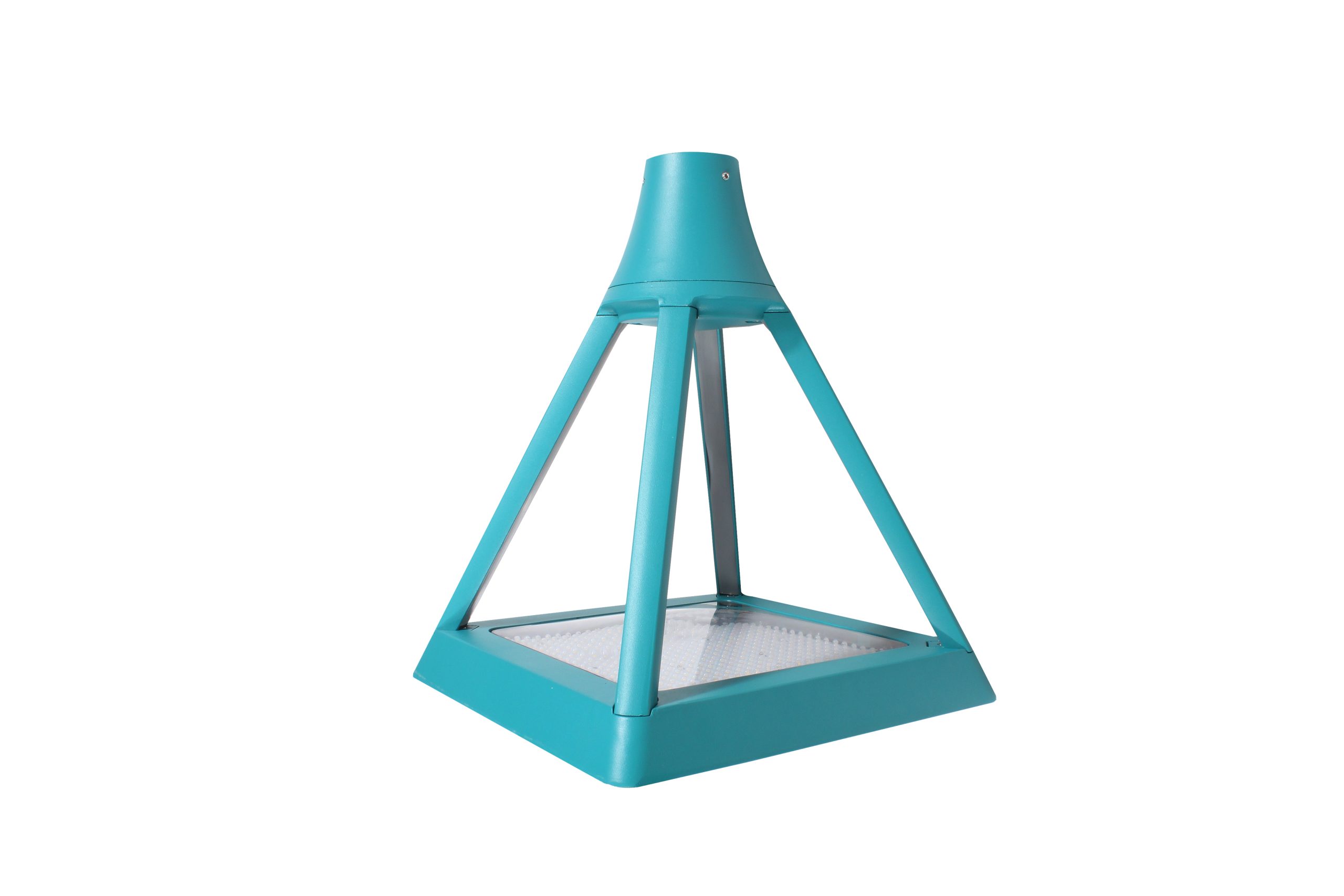

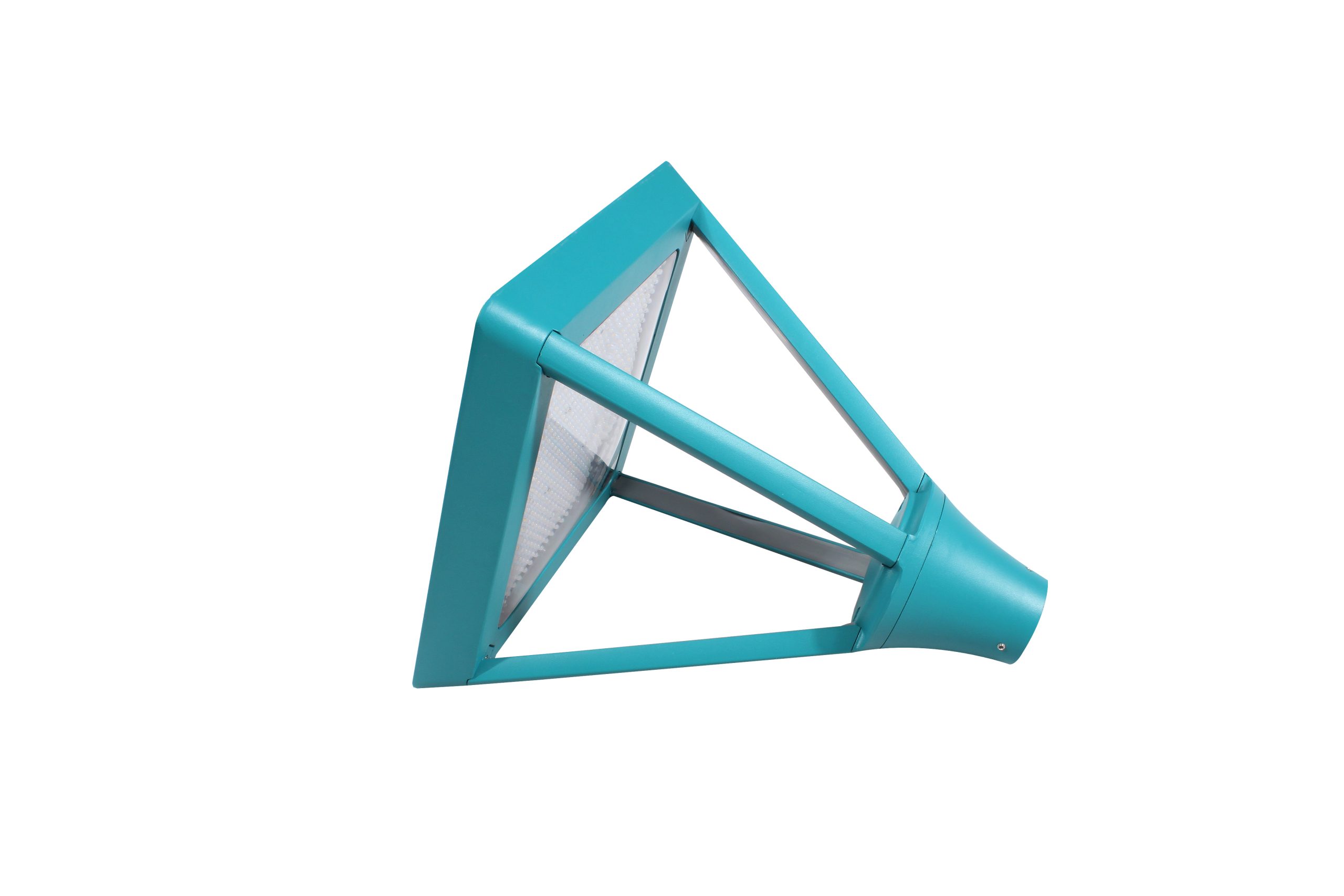

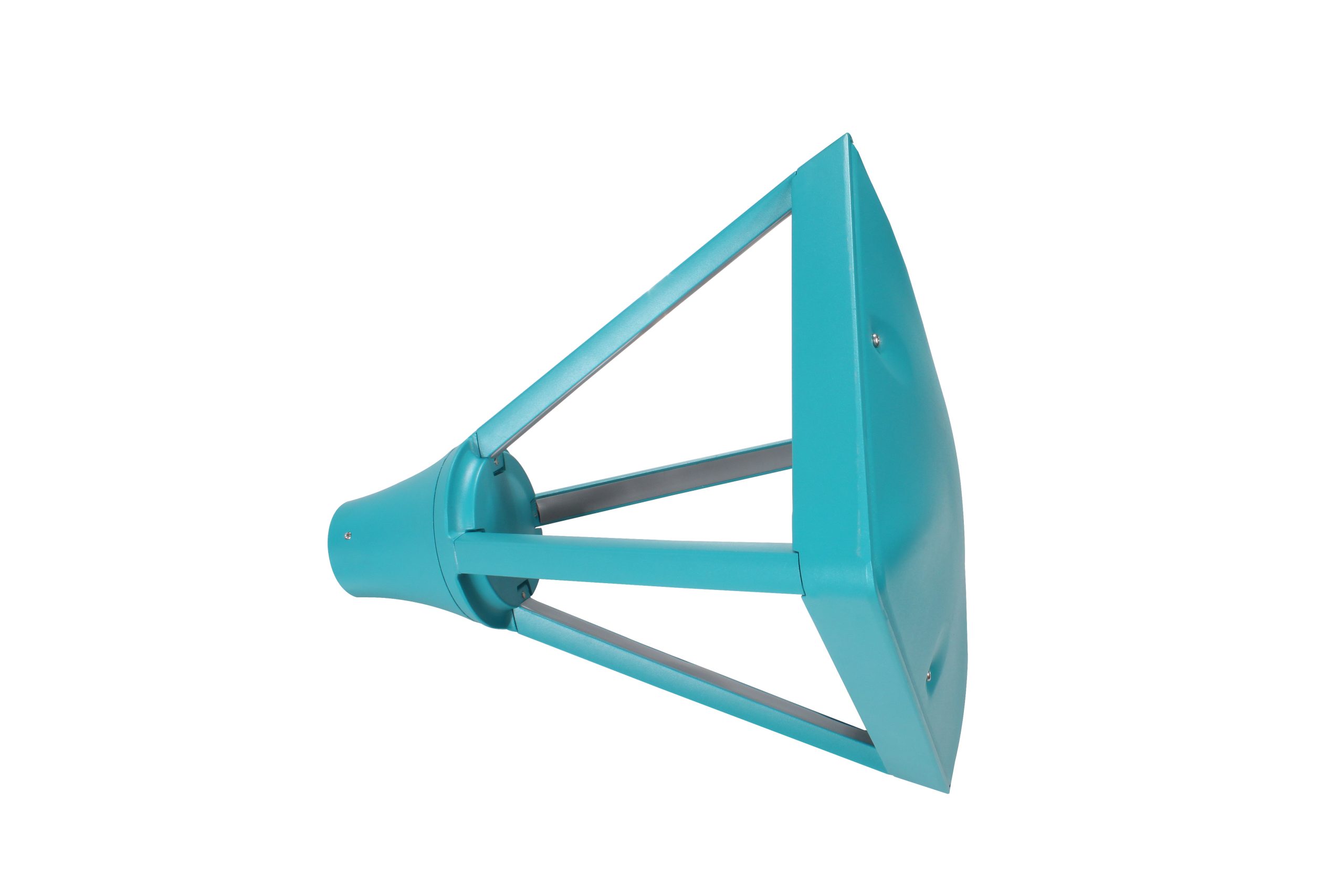

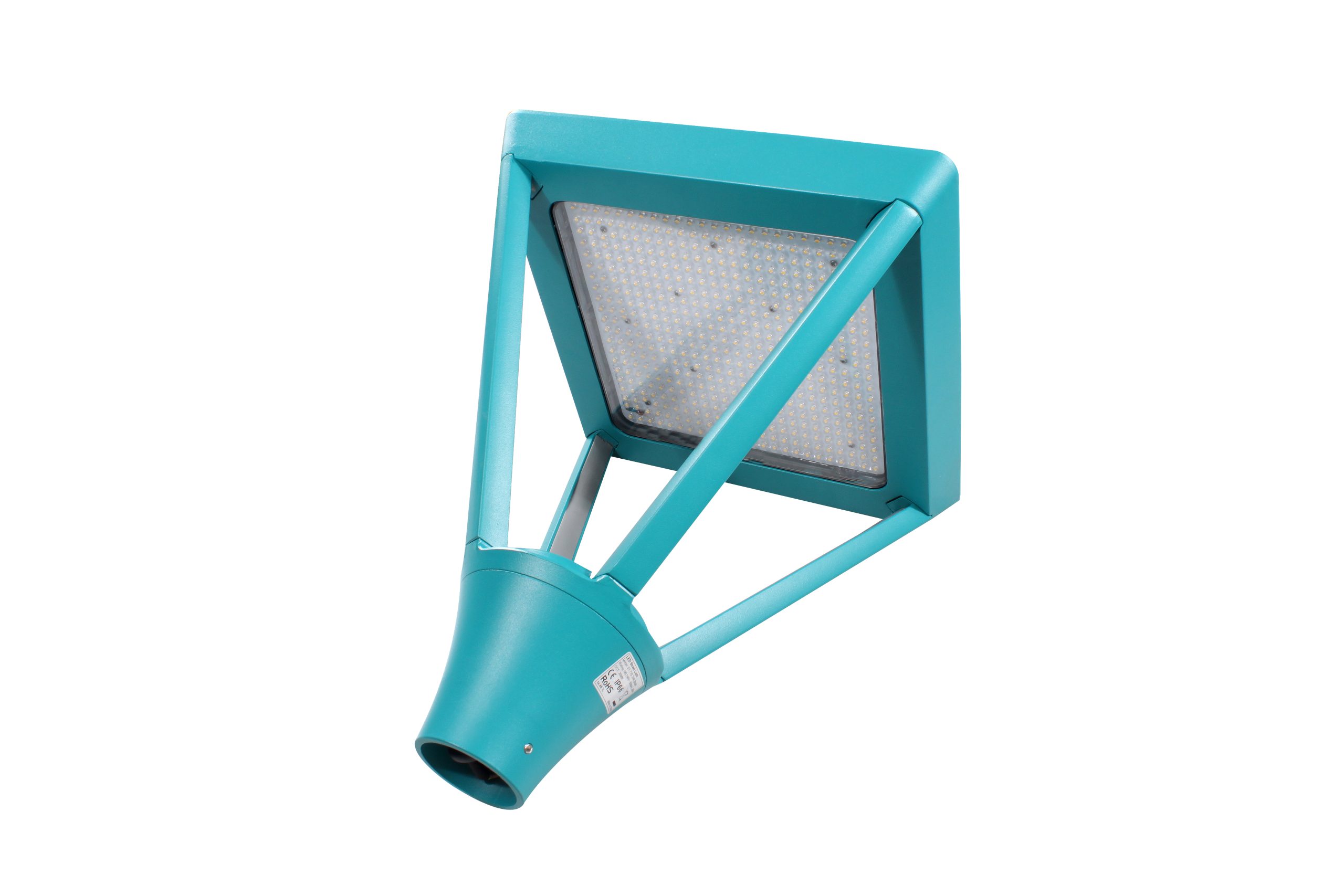

LED Garden Light – ST-T70

Certification TUV ENEC, CB, CE, IK10, IP66, LM79, LM80
Warranty 5 years
Lamp body Die-cast aluminum
Light source Nichia Led or SINOCO patent Led
Luminaire’s Efficiency 190-200Lm/W or 120~130Lm/W optional
Optical Anodized aluminium reflector and flat or lenticular tempered glass cover

Product Description

Features

Product	Led garden light (ST-T70)
Certification	TUV ENEC, CB, CE, IK10, IP66, LM79, LM80
Warranty	5 years
Lamp body	Die-cast aluminum
Light source	Nichia Led or SINOCO patent Led
Luminaire’s Efficiency	190-200Lm/W or 120~130Lm/W optional
Optical	Anodized aluminium reflector and flat or lenticular tempered glass cover
Gear plate	Galvanized steel plate
Finishing	Surface anti-ageing electrostatic spray processing Super resistance to corrosion
Installation height	4 – 10M
Fixing	Side fitting ø60mm or ø76mm, hanging fitting ø38mm

Parameter

Model	Power	Input voltage	Light Source	Luminous Flux	Luminaire’s Efficiency	Product size	N.W	G.W	Packing (mm)
ST-T70-30W	30W	100-277VAC 50-60HZ	Led	3900Lm & 6000Lm	130Lm/W & 200Lm/W	L360 * W360 * H480mm	6.2kg	7kg	L400 * W400 * H520mm
ST-T70-40W	40W	100-277VAC 50-60HZ	Led	5200Lm & 8000Lm	130Lm/W & 200Lm/W	L360 * W360 * H480mm	6.2kg	7kg	L400 * W400 * H520mm
ST-T70-60W	60W	100-277VAC 50-60HZ	Led	7400Lm	130Lm/W	L360 * W360 * H480mm	6.2kg	7kg	L400 * W400 * H520mm
ST-T70-80W	80W	100-277VAC 50-60HZ	Led	10400Lm	130Lm/W	L360 * W360 * H480mm	6.2kg	7kg	L400 * W400 * H520mm
ST-T70-90W	90W	100-277VAC 50-60HZ	Led	11700Lm	130Lm/W	L360 * W360 * H480mm	6.2kg	7kg	L400 * W400 * H520mm
