LED Gas Station Light – ST-GS-C

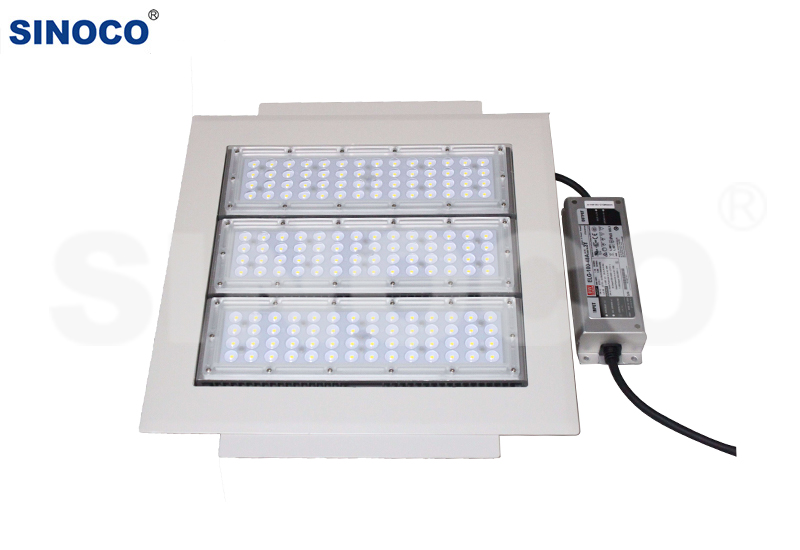

LED Gas Station Light – ST-GS-C - Image 2

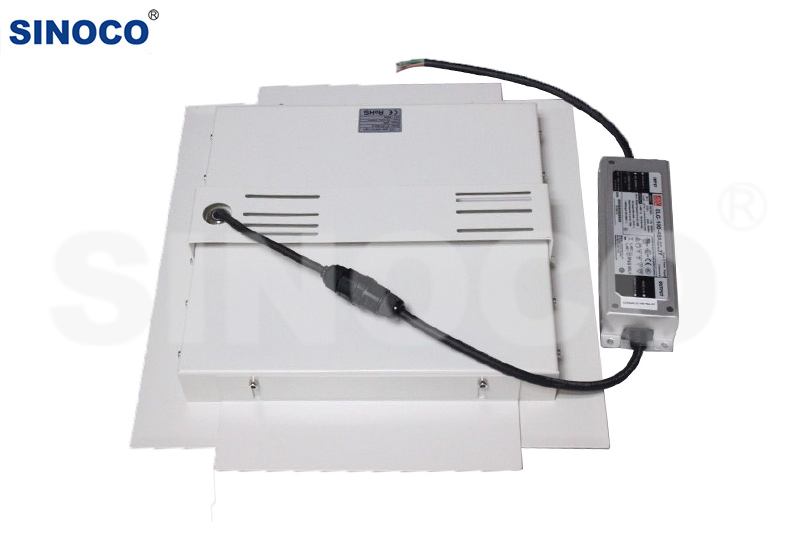

LED Gas Station Light – ST-GS-C - Image 3

LED Gas Station Light – ST-GS-C

Certification CE, RoHS
Warranty 5 years
Lamp body Aluminum
Light source LUMILEDS
Luminaire’s Efficiency 130Lm/W
Driver Meanwell

Features

ProductLed gas station light (ST-GS-C)
CertificationCE, RoHS
Warranty5 years
Lamp bodyAluminum
Light sourceLUMILEDS
Luminaire’s Efficiency130Lm/W
DriverMeanwell
Installation methodCeiling mount
ApplicationGas station, parking lot etc

Parameter

ModelPowerInput voltageLight
Source		Luminous
Flux		Luminaire’s
Efficiency		Product sizeN.WG.WPacking (mm)
ST-GS-C-40W40W100-277VAC
50-60HZ		LUMILEDS5200Lm130Lm/WL327 * W380 * H110mm4.8kg5.8kgL370 * W450 * H140mm
ST-GS-C-60W60W100-277VAC
50-60HZ		LUMILEDS7800Lm130Lm/WL327 * W380 * H110mm4.8kg5.8kgL370 * W450 * H140mm
ST-GS-C-80W80W100-277VAC
50-60HZ		LUMILEDS10400Lm130Lm/WL327 * W380 * H110mm4.8kg5.8kgL370 * W450 * H140mm
ST-GS-C-90W90W100-277VAC
50-60HZ		LUMILEDS11700Lm130Lm/WL430 * W390 * H110mm5.8kg6.8kgL470 * W450 * H140mm
ST-GS-C-100W100W100-277VAC
50-60HZ		LUMILEDS13000Lm130Lm/WL430 * W390 * H110mm5.8kg6.8kgL470 * W450 * H140mm
ST-GS-C-120W120W100-277VAC
50-60HZ		LUMILEDS15600Lm130Lm/WL430 * W390 * H110mm5.8kg6.8kgL470 * W450 * H140mm
ST-GS-C-150W150W100-277VAC
50-60HZ		LUMILEDS19500Lm130Lm/WL517 * W380 * H110mm7.5kg8.9kgL560 * W450 * H140mm
ST-GS-C-180W180W100-277VAC
50-60HZ		LUMILEDS23400Lm130Lm/WL517 * W380 * H110mm7.5kg8.9kgL560 * W450 * H140mm
ST-GS-C-200W200W100-277VAC
50-60HZ		LUMILEDS26000Lm130Lm/WL517 * W380 * H110mm7.5kg8.9kgL560 * W450 * H140mm

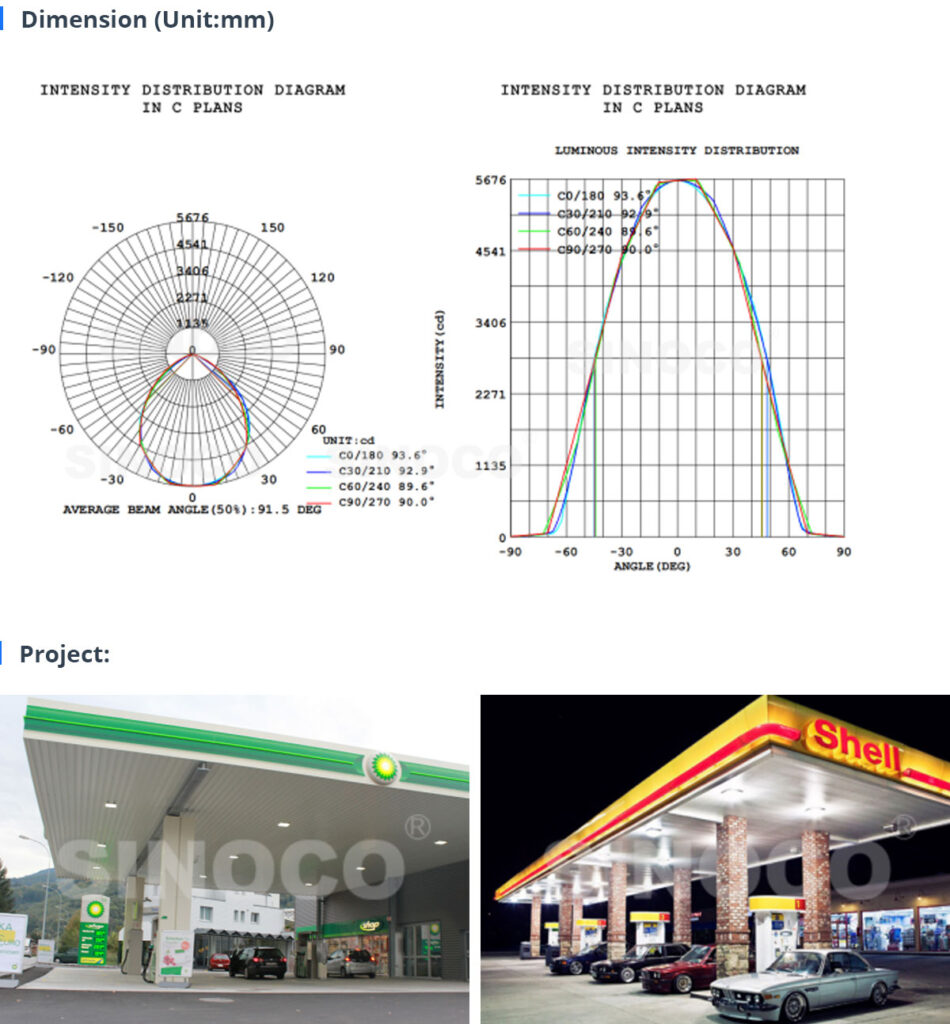

ST GS C5
