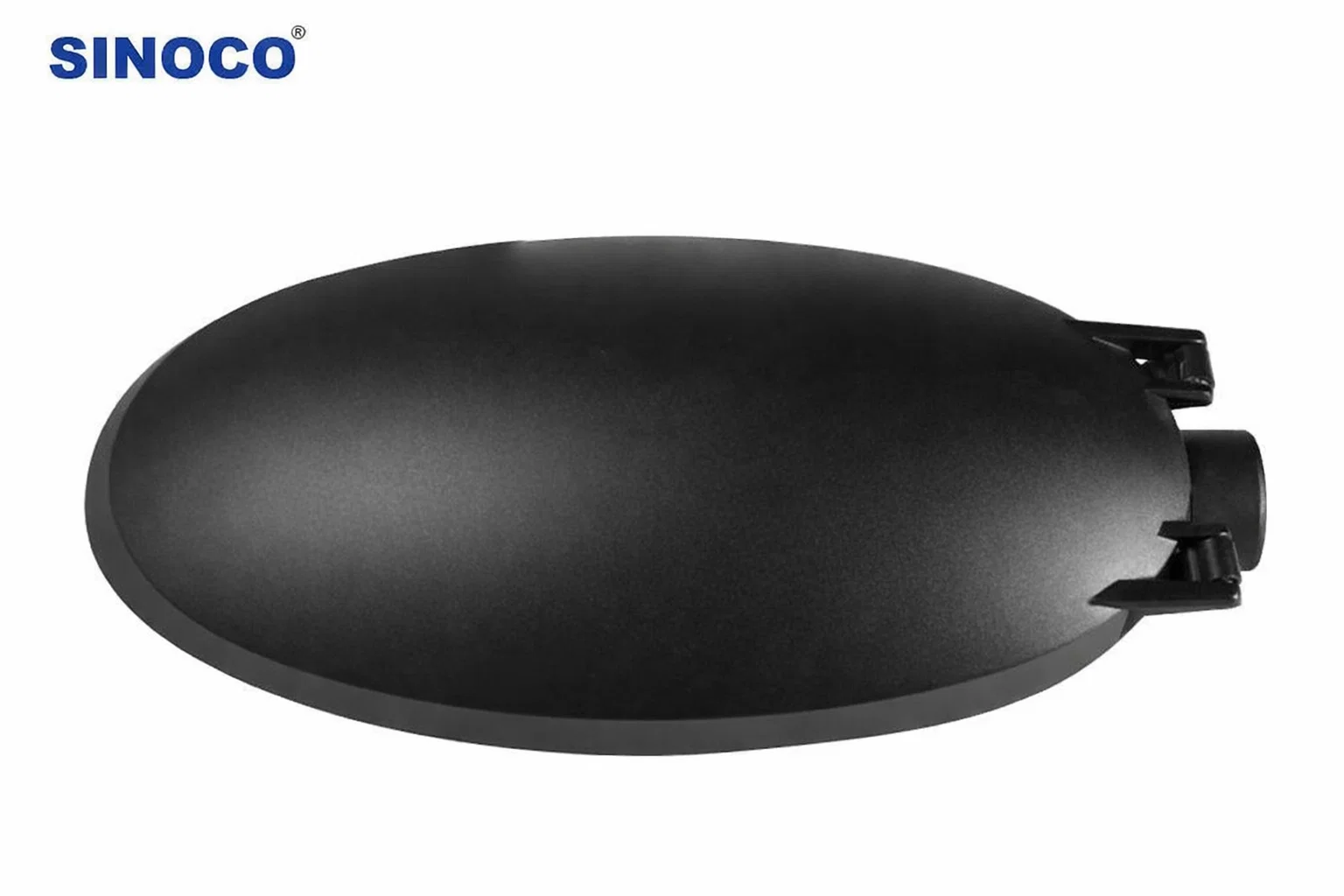

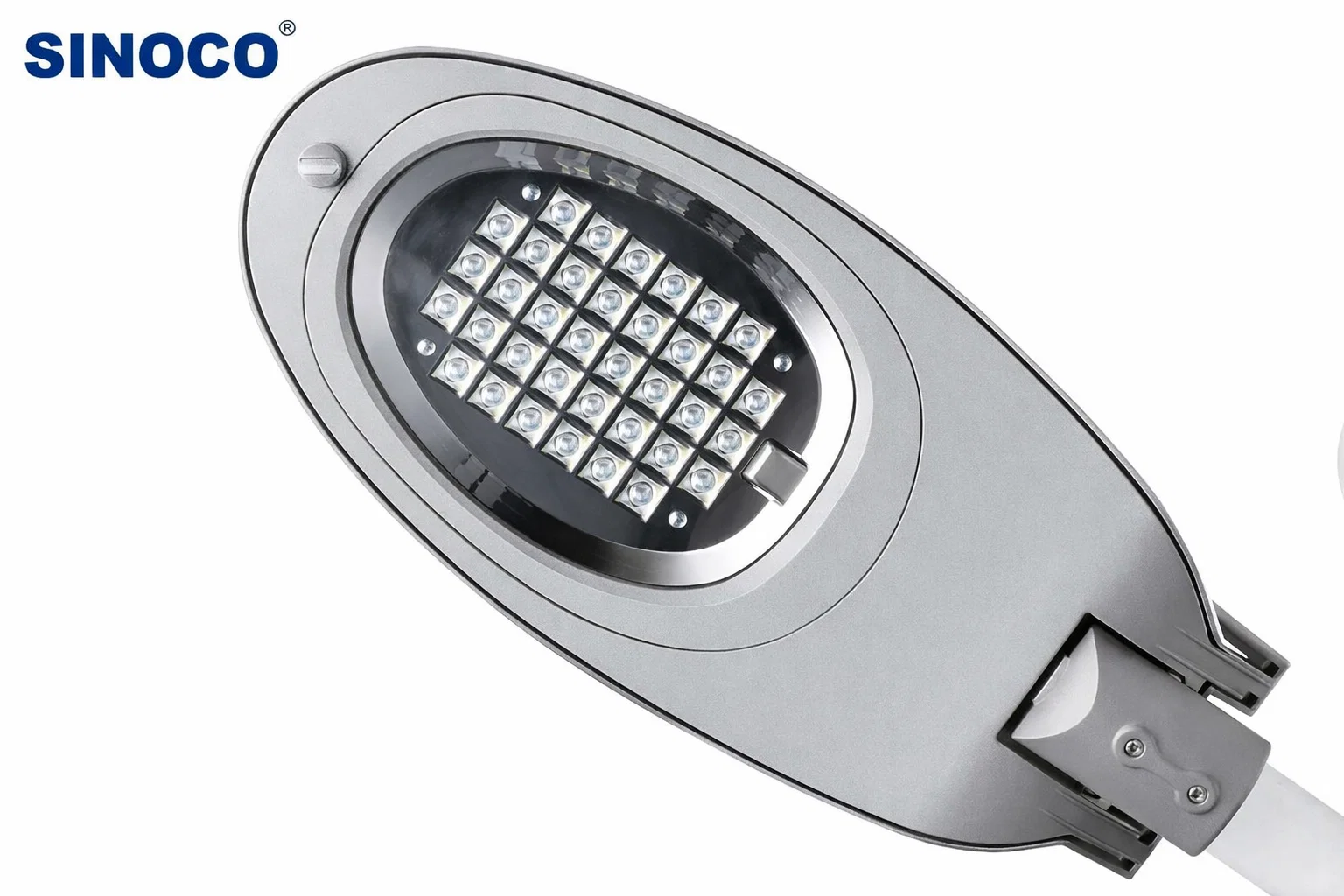

LED Roadway Light – ST-41

LED Roadway Light – ST-41

Product Led street light (ST-41)
Certification TUV ENEC, CB, CE, IK10, IP66, LM79, LM80, TM-21
Warranty 5 years
Lamp body Die-cast aluminum
Light source Nichia Led
Luminaire’s Efficiency 120~130Lm/W

Product Description

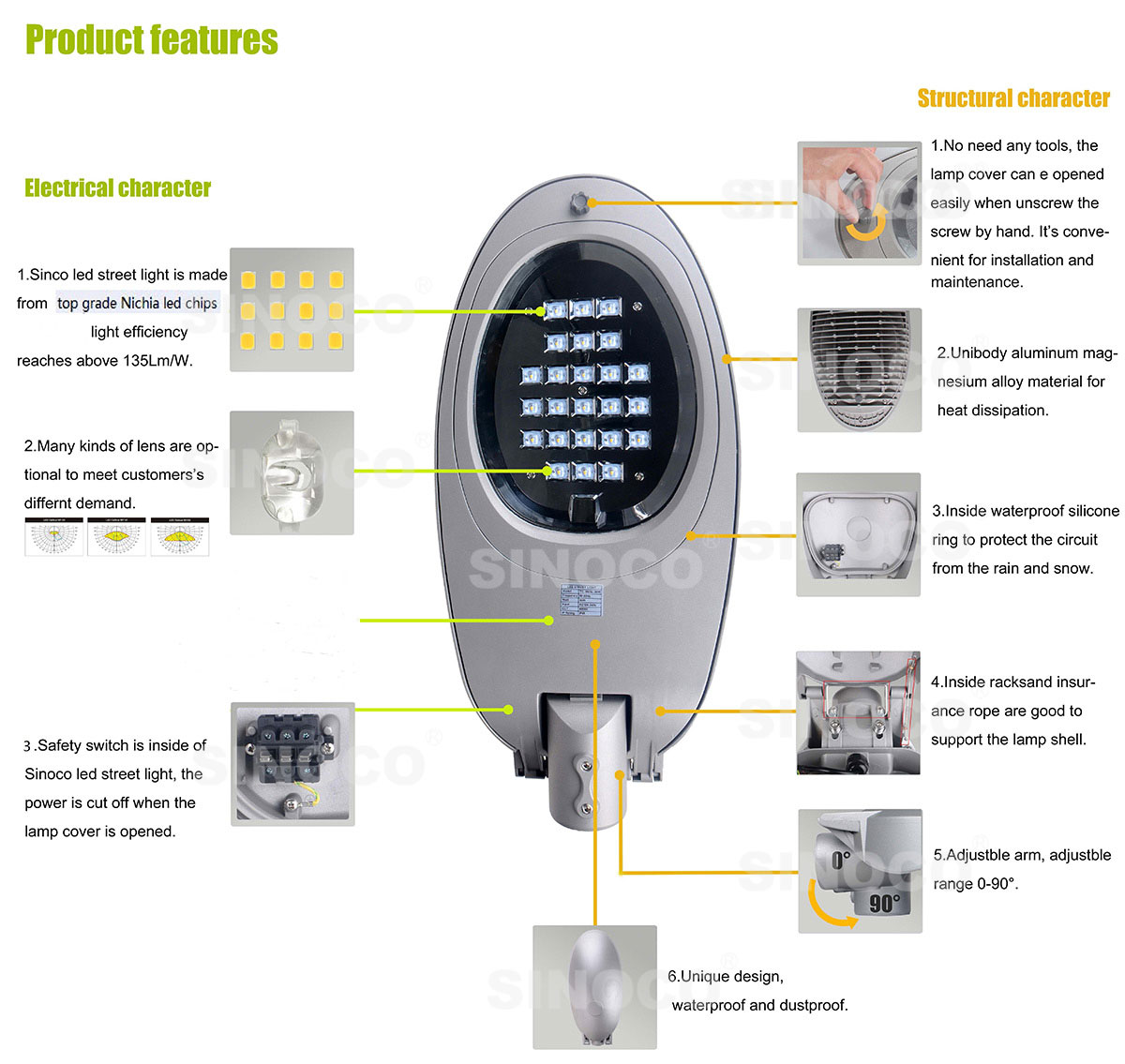

Features

Product	Led street light (ST-41)
Certification	TUV ENEC, CB, CE, IK10, IP66, LM79, LM80, TM-21
Warranty	5 years
Lamp body	Die-cast aluminum
Light source	Nichia Led
Luminaire’s Efficiency	120~130Lm/W
Optical	High temperature resistant PP plastic reflector UV treatment surface, super white toughened glass

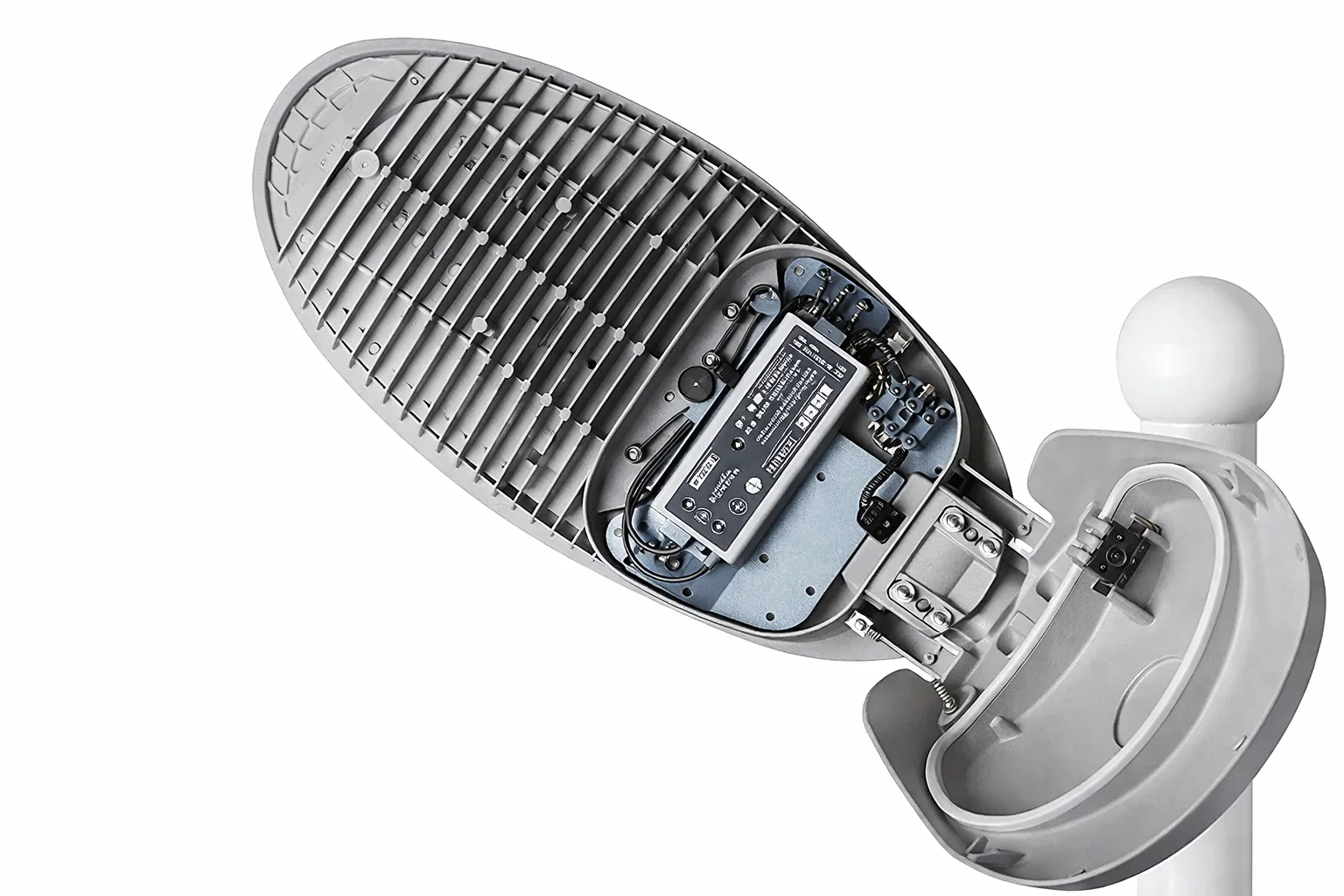

Gear plate	Galvanized steel plate, botton design for opened device
Electric	Quick on/off connector when it’s opened
Finishing	Surface anti-ageing electrostatic spray processing Super resistance to corrosion
Installation height	4 – 10M
Fixing	Top or side fitting ø60 or ø76mm, angle can be adjustable

Parameter

Model	Power	Input voltage	Light Source	Luminous Flux	Luminaire’s Efficiency	Product size	N.W	G.W	Packing(mm)
ST-41-30W	30W	100-277VAC 50-60HZ	Nichia Led	3903Lm	120-130Lm/W	L620W295H152mm	7.3kg	8.3kg	L670W340H200mm
ST-41-40W	40W	100-277VAC 50-60HZ	Nichia Led	5255Lm	120-130Lm/W	L620W295H152mm	7.3kg	8.3kg	L670W340H200mm
ST-41-60W	60W	100-277VAC 50-60HZ	Nichia Led	7090Lm	120-130Lm/W	L620W295H152mm	7.3kg	8.3kg	L670W340H200mm
ST-41-80W	80W	100-277VAC 50-60HZ	Nichia Led	9556Lm	120-130Lm/W	L620W295H152mm	7.3kg	8.3kg	L670W340H200mm
ST-41-100W	100W	100-277VAC 50-60HZ	Nichia Led	12212Lm	120-130Lm/W	L620W295H152mm	7.3kg	8.3kg	L670W340H200mm
ST-41-120W	120W	100-277VAC 50-60HZ	Nichia Led	13915Lm	120-130Lm/W	L620W295H152mm	7.3kg	8.3kg	L670W340H200mm

Downloads

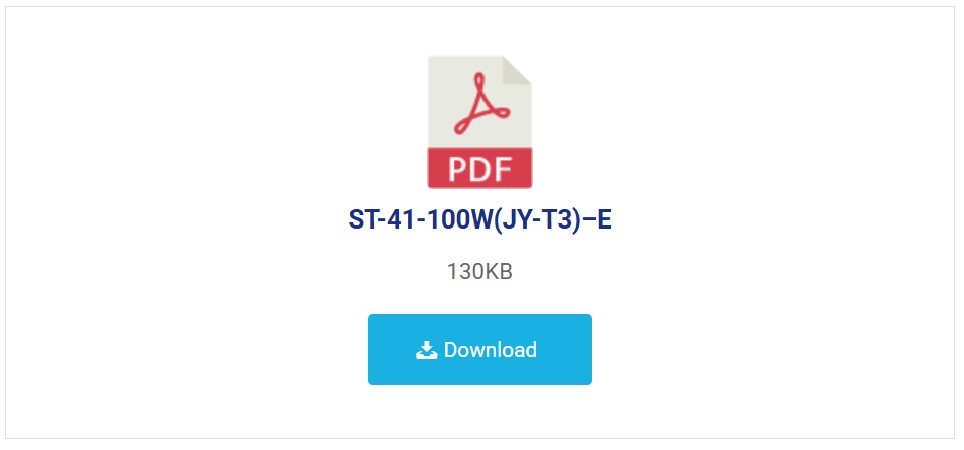

ST-41-100W(JY-T3)–E

130KB

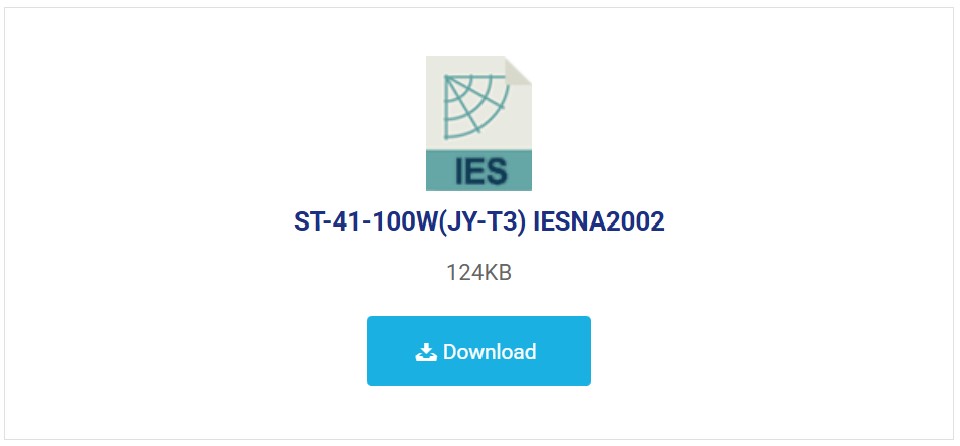

ST-41-100W(JY-T3) IESNA2002

124KB

Inquiry or Support

Related Products

LED Roadway Light - ST-52 — LED Roadway Light
September 15, 2021/
ST-52
30W / 40W / 60W / 80W / 100W /110W/ 115W / 120W
View Full Details

LED Roadway Light - ST-41 — LED Roadway Light
September 15, 2021/
ST-41
30W / 40W / 60W / 80W / 100W / 120W
View Full Details

LED Roadway Light - ST-29 — LED Roadway Light
September 17, 2021/
ST-29
30W / 53W / 90W / 125W / 150W
View Full Details

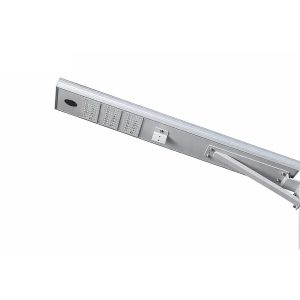

LED Roadway Light - ST-SA — LED Roadway Light
