Certification: TUV ENEC, CB, CE, IK10, IP66, LM79, LM80
Warranty: 5 years
Lamp body: Die-cast aluminum
Light source: Nichia Led
Luminaire’s Efficiency: 120~130Lm/W
Optical: Anodized aluminium reflector and PC diffuser

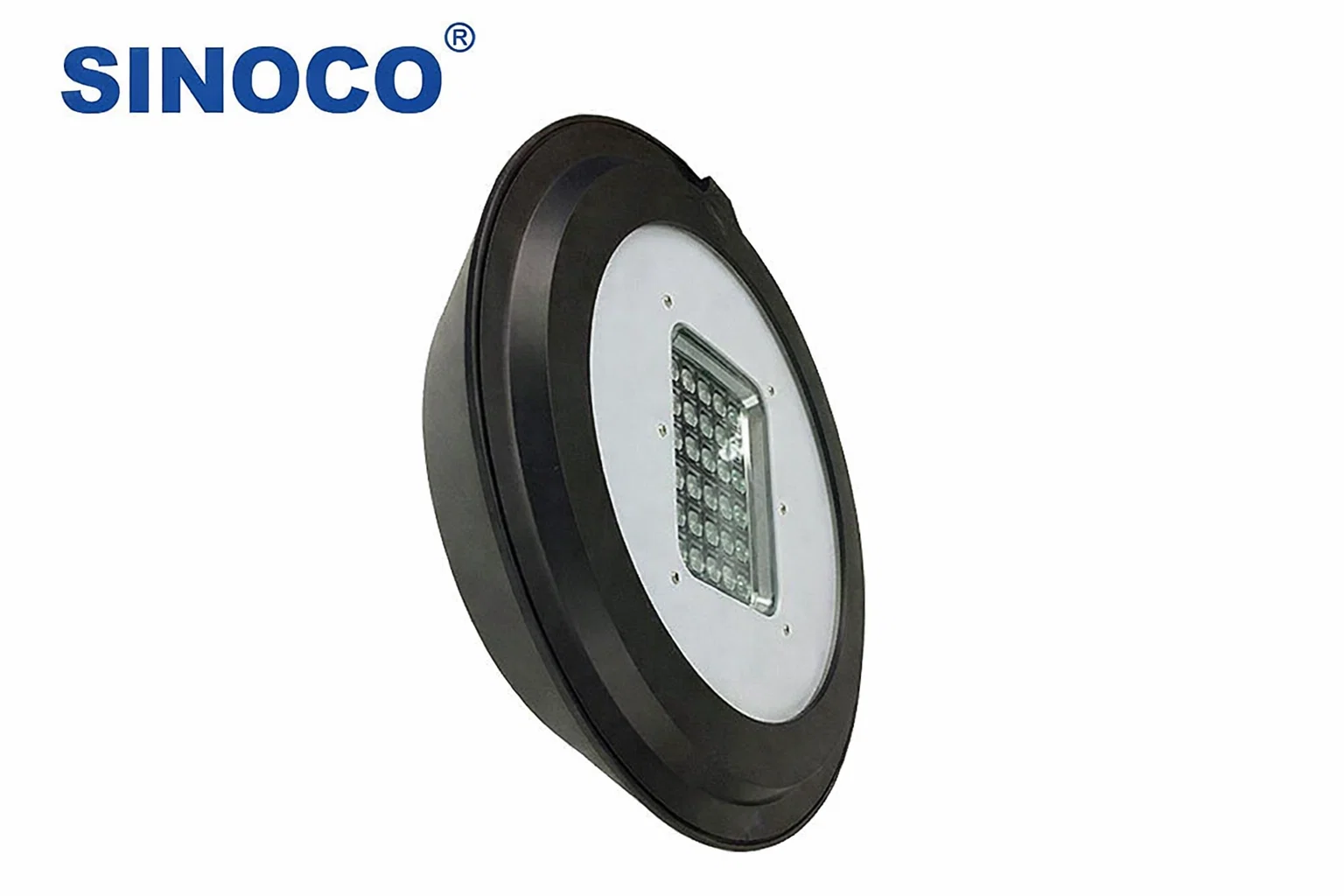

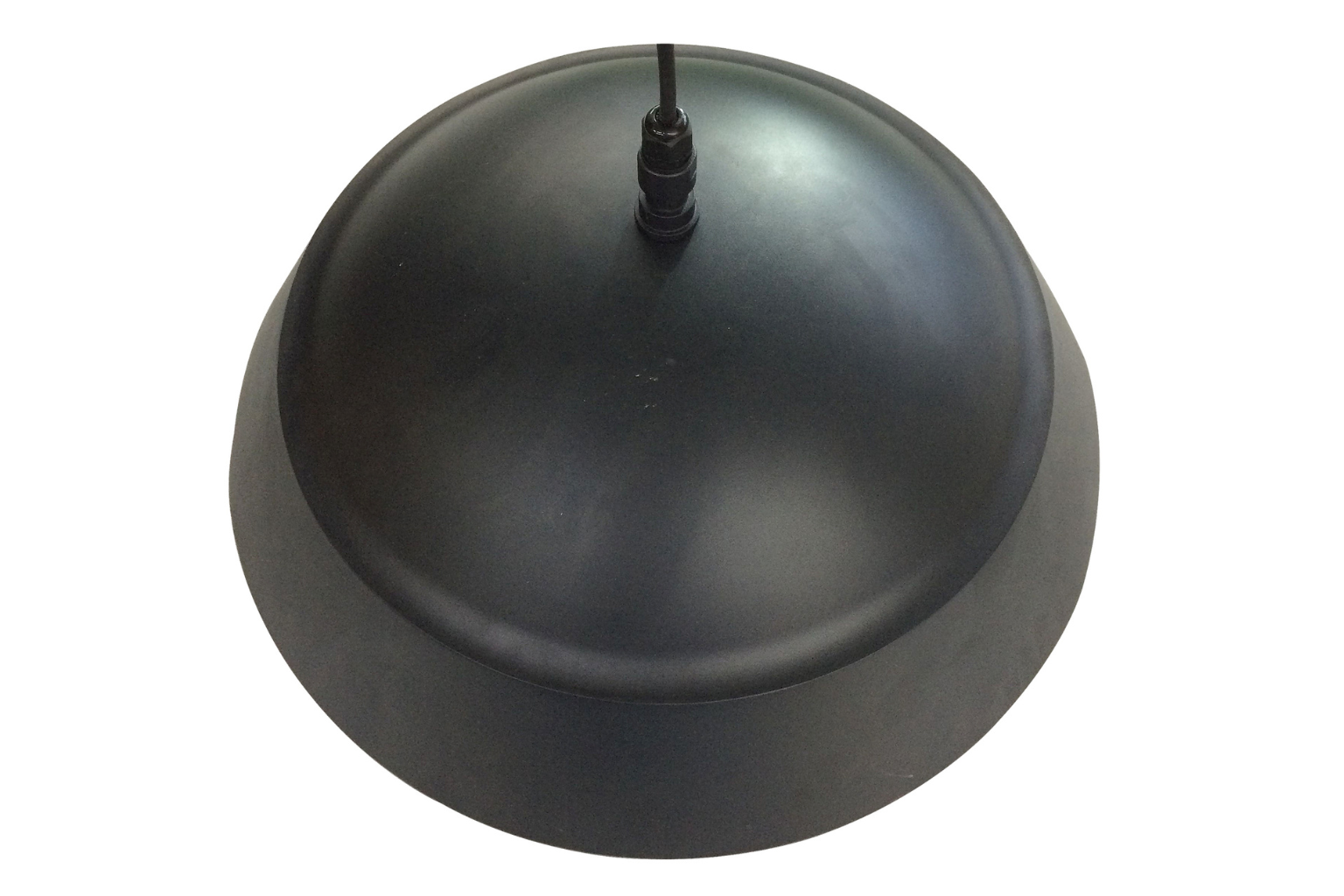

| Product | Led garden light (ST-D-32S) |
| Certification | TUV ENEC, CB, CE, IK10, IP66, LM79, LM80 |
| Warranty | 5 years |
| Lamp body | Die-cast aluminum |
| Light source | Nichia Led |
| Luminaire’s Efficiency | 120~130Lm/W |
| Optical | Anodized aluminium reflector and PC diffuser |
| Gear plate | Galvanized steel plate |
| Finishing | Surface anti-ageing electrostatic spray processing Super resistance to corrosion |
| Installation height | 4 – 10M |
| Fixing | Side fitting Ø60mm or Ø76mm, hanging fitting tube hanging Ø38mm |
| Model | Power | Input voltage | Light Source |
Luminous Flux |
Luminaire’s Efficiency |

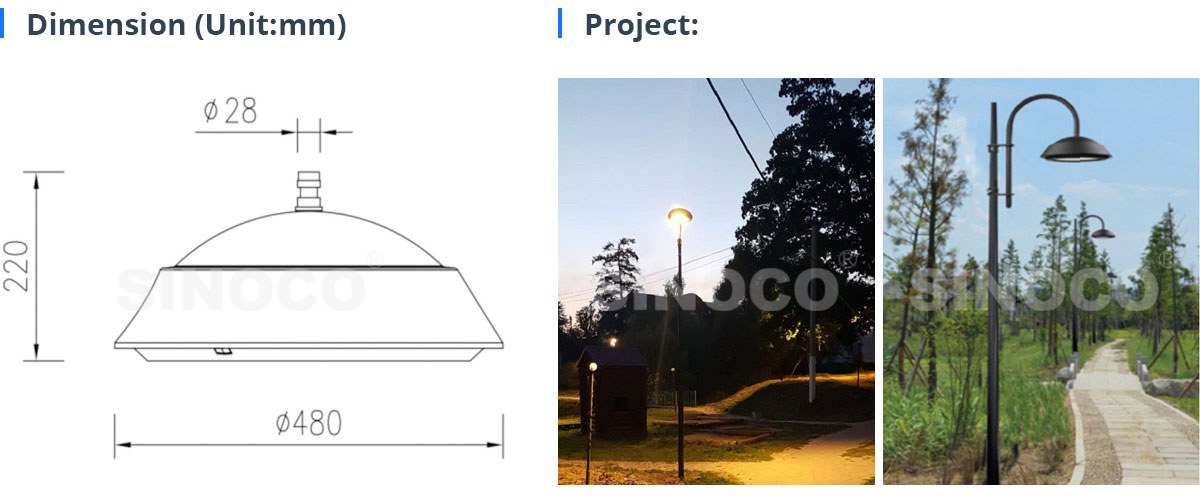

Product size | N.W | G.W | Packing(mm) |
| ST-D-32S-30W | 30W | 100-277VAC 50-60HZ |
Nichia Led | 3903Lm | 120-130Lm/W | Ø480 * H220mm | 5.8kg | 6.8kg | L570* W570 * H245mm |
| ST-D-32S-40W | 40W | 100-277VAC 50-60HZ |
Nichia Led | 5255Lm | 120-130Lm/W | Ø480 * H220mm | 5.8kg | 6.8kg | L570* W570 * H245mm |
| ST-D-32S-60W | 60W | 100-277VAC 50-60HZ |
Nichia Led | 7090Lm | 120-130Lm/W | Ø480 * H220mm | 5.8kg | 6.8kg | L570* W570 * H245mm |
| ST-D-32S-80W | 80W | 100-277VAC 50-60HZ |
Nichia Led | 9556Lm | 120-130Lm/W | Ø480 * H220mm | 6.2kg | 7.2kg | L570* W570 * H245mm |
| ST-D-32S-90W | 90W | 100-277VAC 50-60HZ |
Nichia Led | 10935Lm | 120-130Lm/W | Ø480 * H220mm | 6.5kg | 7.5kg | L570* W570 * H245mm |
